Interactive Sectional Chart Training

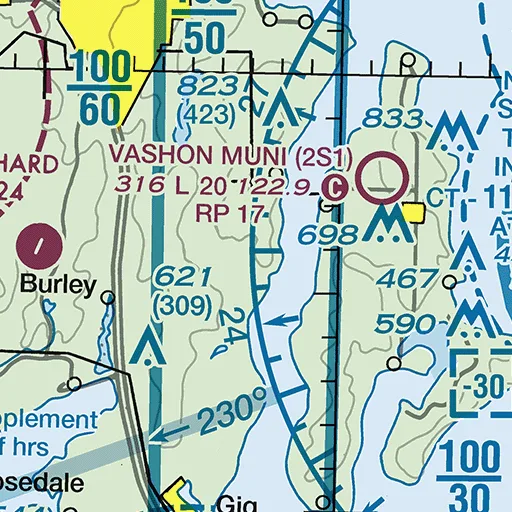

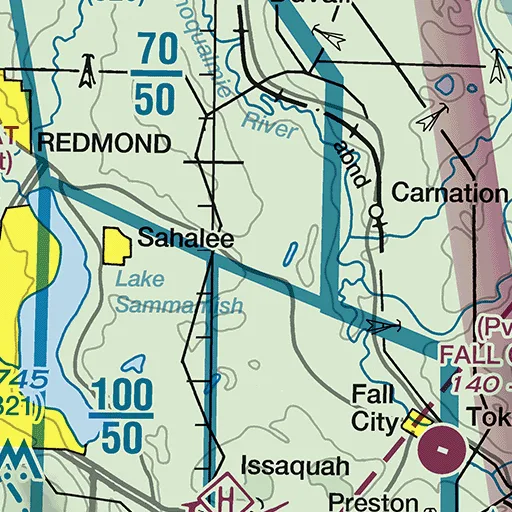

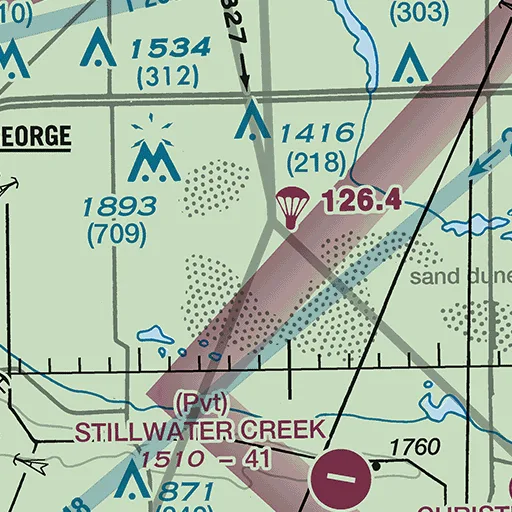

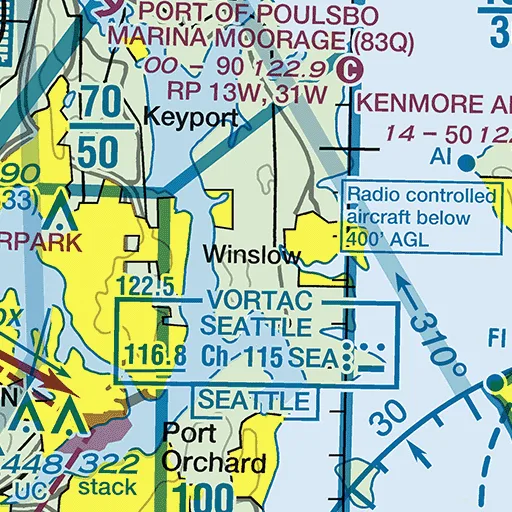

Most chart training makes you memorise a legend. Here the real FAA sectional is the classroom — you pan it, tap it, slice it and use it to make pilot and drone-operator decisions.

Start Level 1Open the Sectional Lab
SEE IT
Real FAA sectional imagery — not a cartoon of one.
TOUCH IT
Pan, zoom, tap, measure and slice the chart itself.
DECODE IT
Every symbol and number, explained where it's printed.
USE IT
Make real pilot and drone-operator decisions.
Seattle Sectional
● CURRENT
Tap to explore →

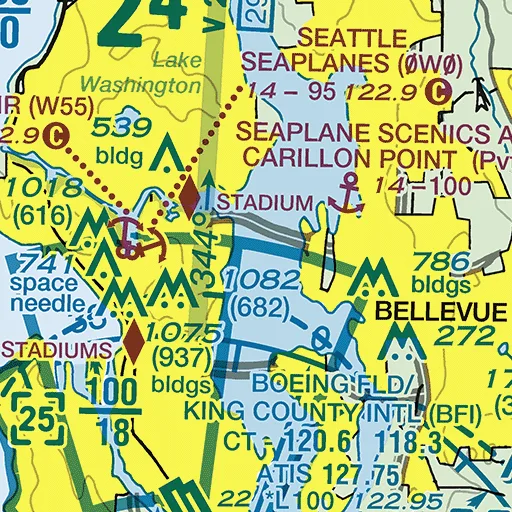

Seattle Class B, lifted to its real floors above the real chart
Home field · Our home field

KSLE — Salem

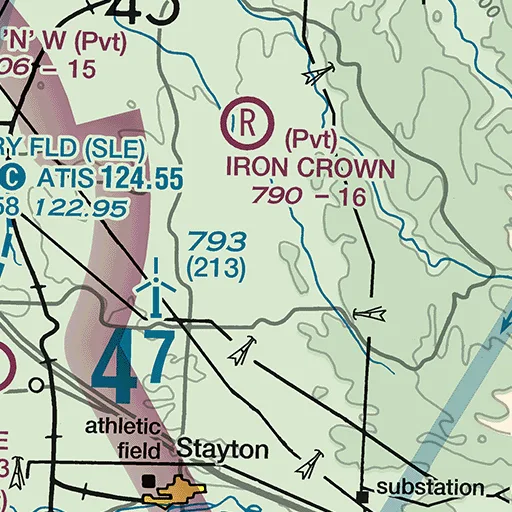

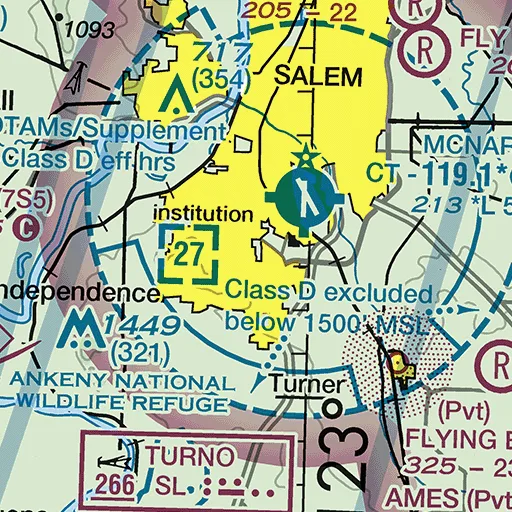

That's the real printed data block from the current Seattle Sectional. Tap it apart with the Airport Exploder — every airport in the country reads the same way.

Explode SalemLevel 4: Airport Data
Signature tools

Built on the chart, not beside it

Airport Exploder

Tap an airport and its printed data flies apart — each piece tied back to exactly where it's printed.

3D Airspace

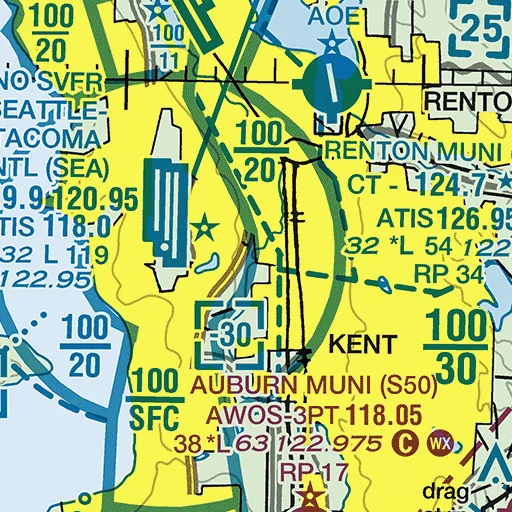

Turn flat Class B lines into the stacked shelves they really are — top, side and 3D views from real FAA values.

Airspace Slice

Draw a line across airspace and get a true vertical cross-section with real terrain underneath.

Chart X-Ray

Dim everything except airspace, airports, obstacles, NAVAIDs or terrain. Learn to filter the chart.

Obstacle Inspector

MSL on top, AGL in parentheses — standing on real terrain. Built for pilots and drone operators.

Legend Mode

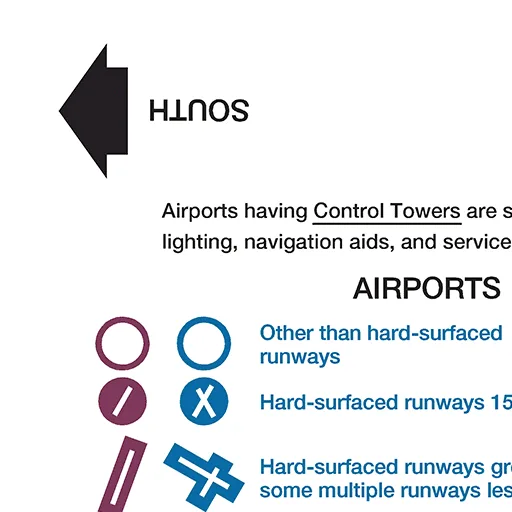

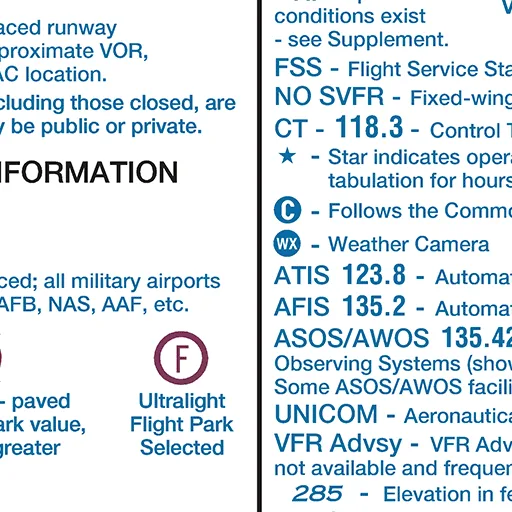

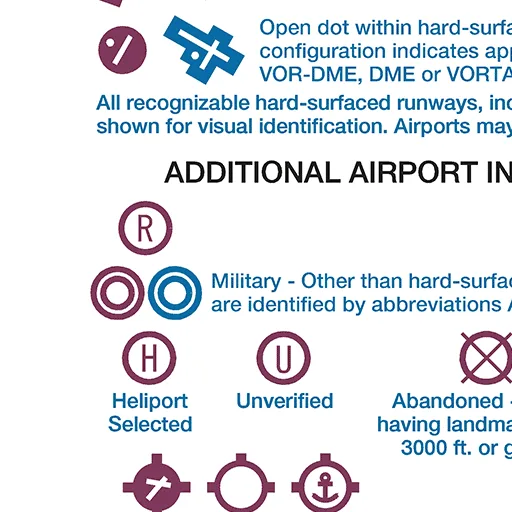

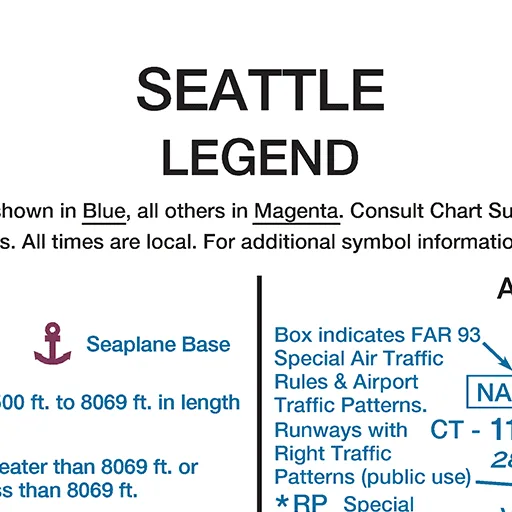

The chart's own printed legend, made interactive — then find a live example on the chart face.

The learning path

Twelve levels

  1. 1Chart Orientation
  2. 2Airports
  3. 3Airspace
  4. 4Airport Data
  5. 5Obstructions
  6. 6Terrain
  7. 7Maximum Elevation Figures
  8. 8NAVAIDs
  9. 9Special Use Airspace
  10. 10Other Airspace & Features
  11. 11Landmarks & Visual Navigation
  12. 12Putting It Together
On the table
Seattle Sectional
Current Edition
Effective
September 3, 2026
Next edition
October 29, 2026
Scale
1:500,000
Source
FAA Aeronautical Information Services — VFR Raster Chart (GeoTIFF)

Training use only. This app does not replace current charts, NOTAMs, the Chart Supplement or a preflight briefing.
